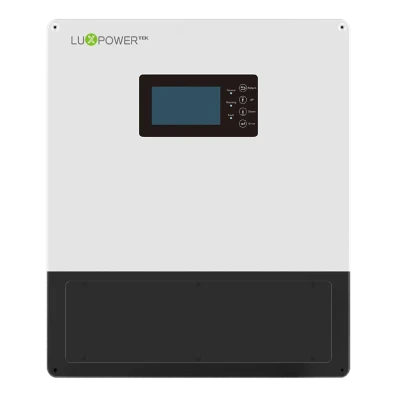

LXP7000 HYBRID (Parallel)

  • Max. DC Input Power: – 12000W
  • Nominal DC Input Voltage: – 360V.d.c
  • DC Input Voltage Range: – 100 – 600V.d.c
  • MPPT Voltage Range: – 150 – 500V.d.c
  • Start-up Voltage: – 140V.d.c
  • MPPT Number: – 2/2
  • Max. DC Input Current: – 25A/25A
  • Max. Short-circuit Currant: – 17A/17A
  • Max. Input Power Per MTTP: – 6000W/6000W


The Lux Hybrid 7kw Parallel unit is a single phase inverter. The maximum PV input is 12kw over 4 inputs with dual MPPT tracking. The unit has been developed to work with the Greenlinx batteries.

The unit is capable of a charge rate of 7kw, discharge of 7kw and therefore a supply to the EPS of up to 7kw. This unit also has a separate input for a generator making it extremely flexible.

It is important to understand that a charge/discharge rate of 7kw is 140A which is above the capacity of standard batteries. Therefore if requiring the Max rate of 7kw for charge/discharge a combiner box must be used to create this amperage safely. Using the combiner box allows a minimum of 4 and a maximum of 16 of the Greenlinx 3.2 batteries.

Without the use of a combiner box it is possible to install from 1-8 Greenlinx batteries, however it is necessary to reduce the amps to 100A on the Lux controller, upgrade the batteries and install a 100A DC breaker to ensure there cannot be any overload.

The Lux Hybrid units benefit from all the same monitoring platforms available to the Luxpower range with all of the additional features such as Octopus Agile and Weather compensation for free.

Paralleling a unit is a way of linking more than one unit together, and selecting one unit to be the Primary unit with all others acting as subordinates. This way allows the units to better work together.

The Hanchu Combiner box is designed to work with the 3.2 and the 9.4 kWh batteries.

When using the Luxpower 7kw or 12kw Hybrid inverters, the current (amps) demand is too large for the batteries. Therefore a combiner box allows the batteries to be used as the combiner will add the amps of the batteries together and deliver the higher power through a single larger cable.

Whenever using the combiner box please check you have all the relevant instructions and wiring schematics to correctly set up this rate of charge and discharge.

A parallel unit is a unit which can be used as a single stand alone unit, or as part of a larger system. If more than one unit is being used, then they can be linked together. When linking them together they operate as one unit being the Primary unit with all other units operating as Subordinate units.

Where more than one unit is being installed in parallel the Primary unit is installed exactly like any single unit would be installed – using the CT clamp to measure the operation of the property, then the other units are changed (on the monitoring) to be Subordinate units, simply taking command from the primary unit as to charging or discharging.

Using multiple units in Parallel allows the units to work an be controlled from the Primary Lux unit, providing better communication between the units for more balanced performance.

  • 12 years warranty as standard – Can be extended to 20-year warranty
  • Allows 1 to 8 Lithium Batteries
  • Remote Upgrading – Firmware and parameter upgrading remotely
  • Free monitoring – For Mobile & web portal (PC)
  • Advanced Weather compensation programming
  • Octopus Agile Tariff Ready
  • Octopus Outgoing Tariff Ready
  • Octopus Go Tariff Ready
  • Integrated EPS as standard – Maximum 30.5A Limited
  • Smart export control on both AC & EPS output
  • Max Charge & discharge rate of 140amps
  • Weight – 44Kg
  • Size – 580*490*265
  • IP65 rated
  • UK technical Support
  • Grid Share Incentive ready
  • Seamless automatic switch over – 0.01s
