IBOOST

Features

Wireless Technology

Clear Display For Monitoring Your Savings

Supports Dual Immersion Systems

Flexible Manual Boost And Programmable Timer

Compatible With Any Battery Storage System

Responds Rapidly To The Varying Home Consumption

Six Language Options

Control and Monitor Remotely With The iBoost+ Buddy

CE Compliance To All Product And Safety Standards

2 Year Warranty

Category:

Description

The two parts of the Solar iBoost+ system talk to each other wirelessly. There is a Sender that measures how much is being exported which transmits information to the actual Solar iBoost+ itself and this responds by releasing the free energy available to heat up water in your customers tank.

PRICE INCLUDES INSTALLATION

Innovative and High-Tech Power Diversion System

Fit Solar iBoost+ to your home’s hot water tank and start…

Cutting the cost of water heating

Reducing the use of your boiler

and maximise the free solar energy generated at your property

Solar iBoost+ enables you to consume excess energy your solar panels generate automatically. Just sit back and join over 150,000 homeowners who already enjoy the extra savings from free hot water!

How it Works

1. Solar Panels Generate Electricity at your home

Your PV solar array generates electricity consumed in real-time in the home, with any excess energy generally exported to the grid.

2. A Special Clamp Detects Unused Energy and the Sender Signals to the Solar iBoost+

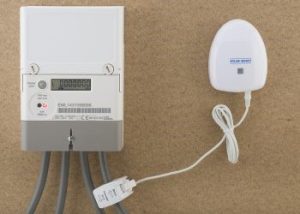

Solar iBoost’s Sender and Clamp are rapidly installed at the household electricity meter.  The Clamp detects when excess energy is available, and the Sender wirelessly sends a signal to the Solar iBoost+ to activate water heating.

LEARN MORE ABOUT THE SENDER

Solar iBoost – PV Immersion Diverter

3. Solar iBoost+ Controls Delivery of Free Excess Energy To Your Immersion Heater

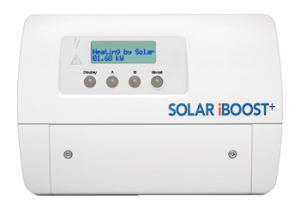

Solar iBoost+ is installed next to the hot water tank and receives messages from the Sender.  When activated, it intelligently controls and adjusts the level of energy flowing to your immersion heater in line with the export levels as they rise and fall.

… water is heated over the day using just the free solar energy.  In summer, this may deliver all the hot water your home demands; at other times, you may need to top up using your usual heating system or use the built-in Boost and Timed functions.

Check your savings at the solar iBoost+ or get the optional iBoost+ Buddy.

Easily Connected to an Existing Hot Water Immersion Heater

If your home has a hot water cylinder (tank), this will likely include an immersion heater, even if gas is the primary energy source.  The immersion is usually powered from a fused switch which will become the supply to the Solar iBoost+, or your installer will fit the required local isolator.  The Solar iBoost+ is then used to control the immersion automatically from the excess PV energy and manually when you need additional hot water.

The system operates by responding rapidly to the levels of import and export at the property according to the variable parameters of changing weather, energy consumption and generation.  These are constantly changing, and the electronic controller can process the information to ensure that only excess power is delivered for water heating when operating in standard automatic operation.

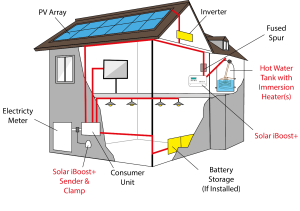

A diagram of a house with solar panels

Description automatically generated

Why Solar iBoost+™

Solar iBoost – PV Immersion Diverter

The Solar iBoost+ is the UK’s best-selling PV immersion controller preferred by most solar installers.

It saves you money by cutting water heating costs and reducing the use of your home’s boiler.

Fitting a Solar iBoost maximises the consumption of the free solar energy generated at your property.

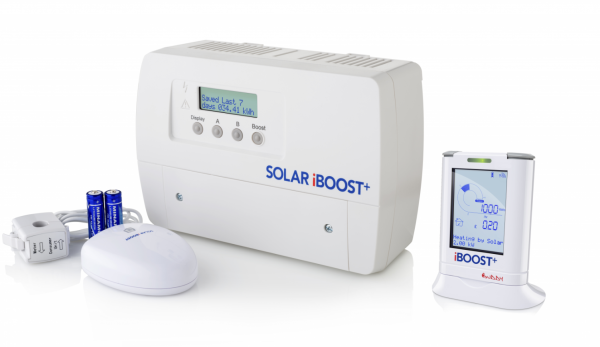

Add the optional iBoost+ Buddy, and you can remotely monitor and control the Solar iBoost+ within your home.

A built-in programmable cut-in threshold is flexible enough to combine use with battery storage systems to prioritise operation.

Easy to install to new and existing systems in less than 30 minutes.

Solar iBoost+ is made and backed by the UK’s oldest renewable energy company.

300 Solar iBoost UK installers.

Watch your Savings Grow

If you have invested in Solar PV for your home, you will already be aware that there are periods of “export,” when you can’t consume all the energy generated by the array. This energy flows back to the grid seamlessly, so you may be unaware of it.

If your home has hot water storage with an immersion heater, then Solar iBoost+ can be installed and save you more money on heating bills in less than 1 hour!

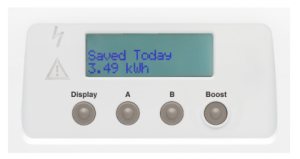

Solar iBoost’s built-in display means you can watch your savings grow; press the display button to see Saved Today, Saved Yesterday, Saved 7 Days, Saved 28 Days and Total Saved readings.

A white panel with buttons and a display

Water Heating Controls at Your Finger Tips

A white panel with buttons and a display

Description automatically generated

A screenshot of a computer screen

Description automatically generated

Solar iBoost+ also lets you control your immersion heater using full grid power.  This is useful for topping up if your hot water cylinder is an electrically operated system.  It incorporates two types of heating controls.

Boost – gives an instant ‘Boost’ of full grid power to the immersion in timed increments.  Each button press adds 15 minutes of grid power operation up to a maximum of two hours.  When the immersion thermostat’s temperature is reached, the Boost function stops automatically if achieved before the selected full-timed period.

Timed Functions are programmable on a 5-day / 2-day timer basis with two times per day available.

Timed Function Seasonal Programmes are interchangeable at the press of a button, enabling you to change from Winter to Summer settings quickly.

Features

Wireless Technology

Clear Display For Monitoring Your Savings

Supports Dual Immersion Systems

Flexible Manual Boost And Programmable Timer

Compatible With Any Battery Storage System

Responds Rapidly To The Varying Home Consumption

Six Language Options

Control and Monitor Remotely With The iBoost+ Buddy

CE Compliance To All Product And Safety Standards

2 Year Warranty

Is my home suitable for a Solar iBoost+

If you have on-site power generation. (Solar PV and wind are most common).

The distance between the water tank and the utility meter is less than 30m.

Energy usage in the household is less than the energy generated, and excess is exported to the grid.

You may be out for periods during the daytime and generate more than is needed to cover the standby of all your appliances OR even at home during the day but rarely consume energy up to the peak output of the solar array or wind turbine.

Whenever you export more than 100W, you could be “dumping” that excess energy into your hot water tank and saving even more money. Even if you have an export meter, the cost savings possible on water heating may be more significant than the export rate paid by the electricity companies.

G98 Certification

G98 Certification Download

Growatt Warranty Procedure

Growatt Warranty Procedure Download

Data Sheet

Data Sheet Download
